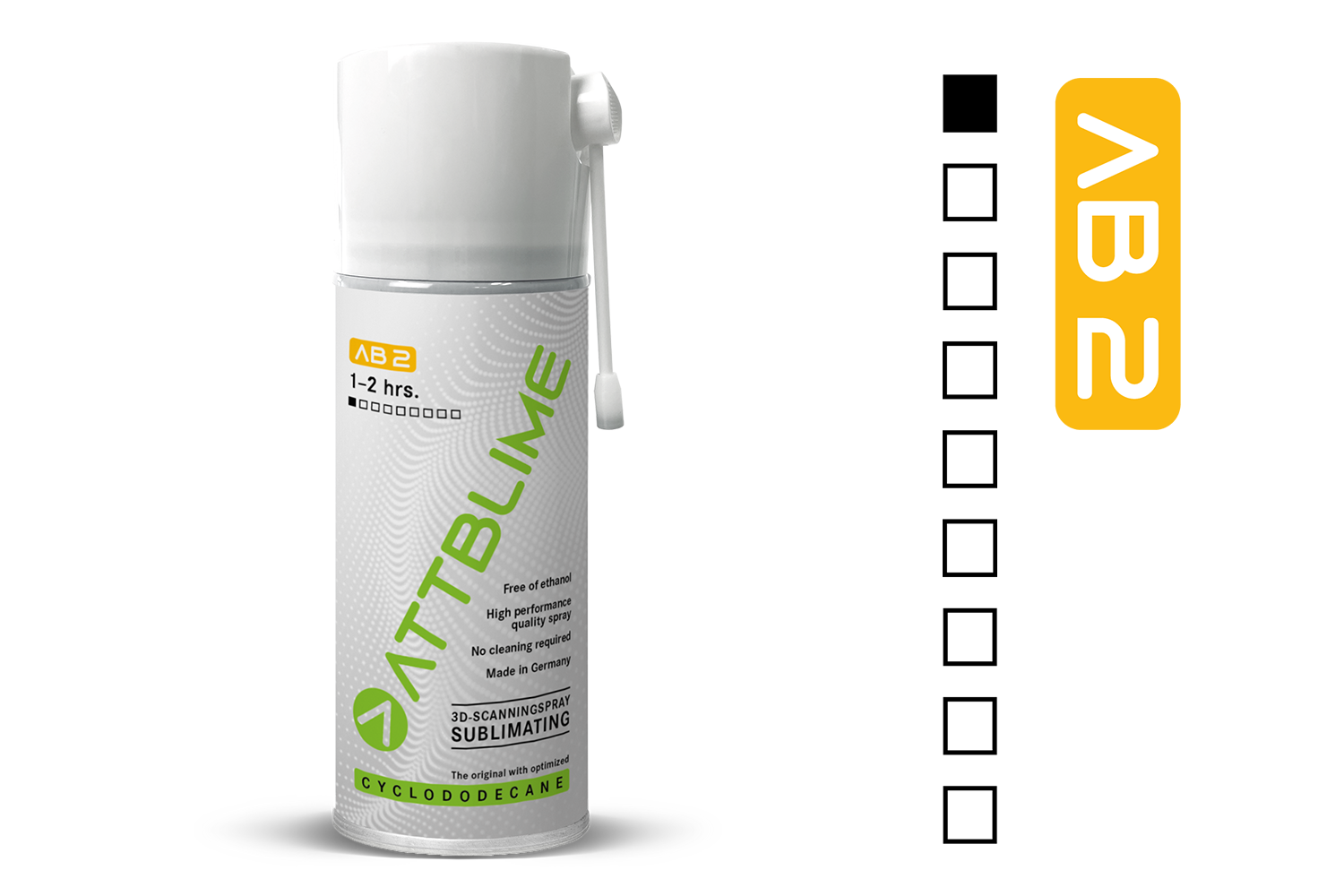

ATTBLIME AB2 Vanishing/Disappearing 3D Scanning Spray

ATTBLIME AB2 Vanishing/Disappearing 3D Scanning Spray

Regular price $50.00 AUD
Regular price $60.00 AUD Sale price $50.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

ATTBLIME® AB2 3D Scanning Spray enables the user to achieve an even and homogeneous spray pattern. The newly developed self-sublimating/disappearing/vanishing spray is based on the proven raw material cyclododecane, which has been optimised by Attblime.

Having an effective scan time of 1 to 2 hours, the spray vanishes from the surface after 2 to 4 hours. However the sublimating time varies on the factors like component surface, room temperature, air circulation or humidity.

The scanning spray is free of ethanol, adamantane, TIO2 and n-Hexane. AB2 adheres to all porous and non-porous surfaces such as textiles, wood, glass, painted surfaces, metal, plastic, stone, mortar and paper.

The unique SHC system (spray-head-change-system), enables the user to spray the components with a conventional standard nozzle and areas that are difficult to access such as blind holes etc. completely and homogeneously with the special nozzle to matt.

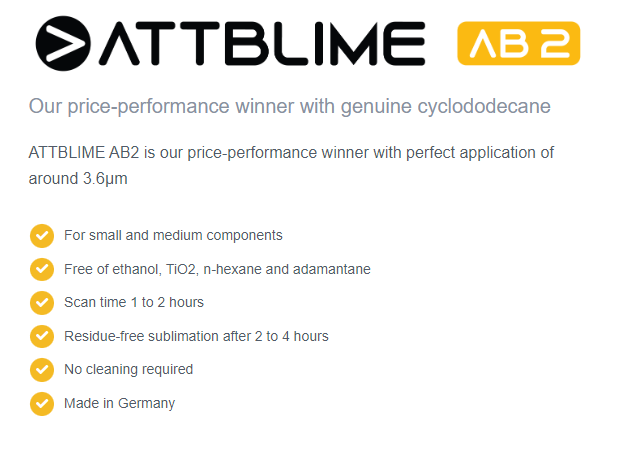

ATTBLIME AB2 is ideal for the temporary matting of surfaces for optical 3D measurement technology without subsequent cleaning. Reference point marks can simply be stuck onto the treated area.

  • Ethanol, N-Hexane,  Adamantane and TiO2 free, ATTBLIME doesn't give you the tingling of nerves or respiratory problems as compared to a similar product in the market.

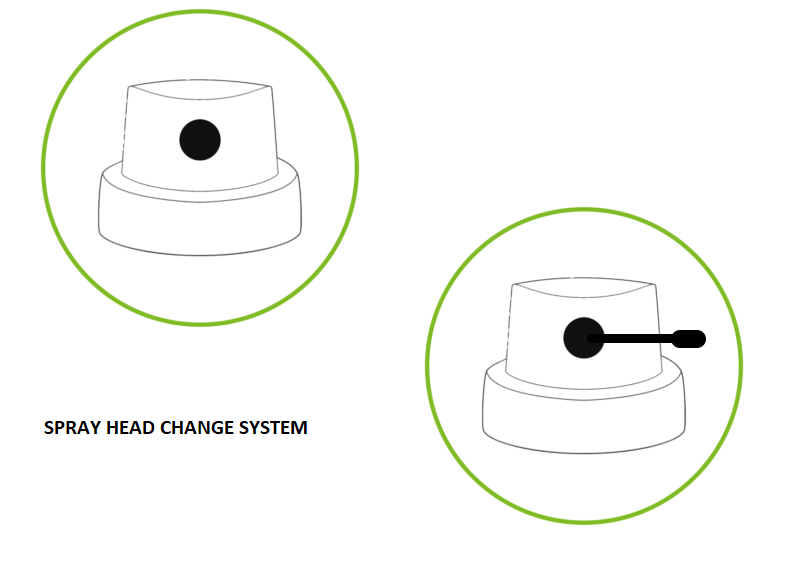

  • Spray Head Change System - Round and Long Nozzle interchange system for uniform coverage on normal and hard to reach surfaces.
  • Coating Thickness - less than 3.6 µm.
  • Scan Time - 1 - 2 hours.
  • Residue-free sublimation after 2 to 4 hours.
  • No cleaning required.
  • Made in Germany.
  • This is equivalent to AESUB Blue 3D Scanning spray however with better performance.

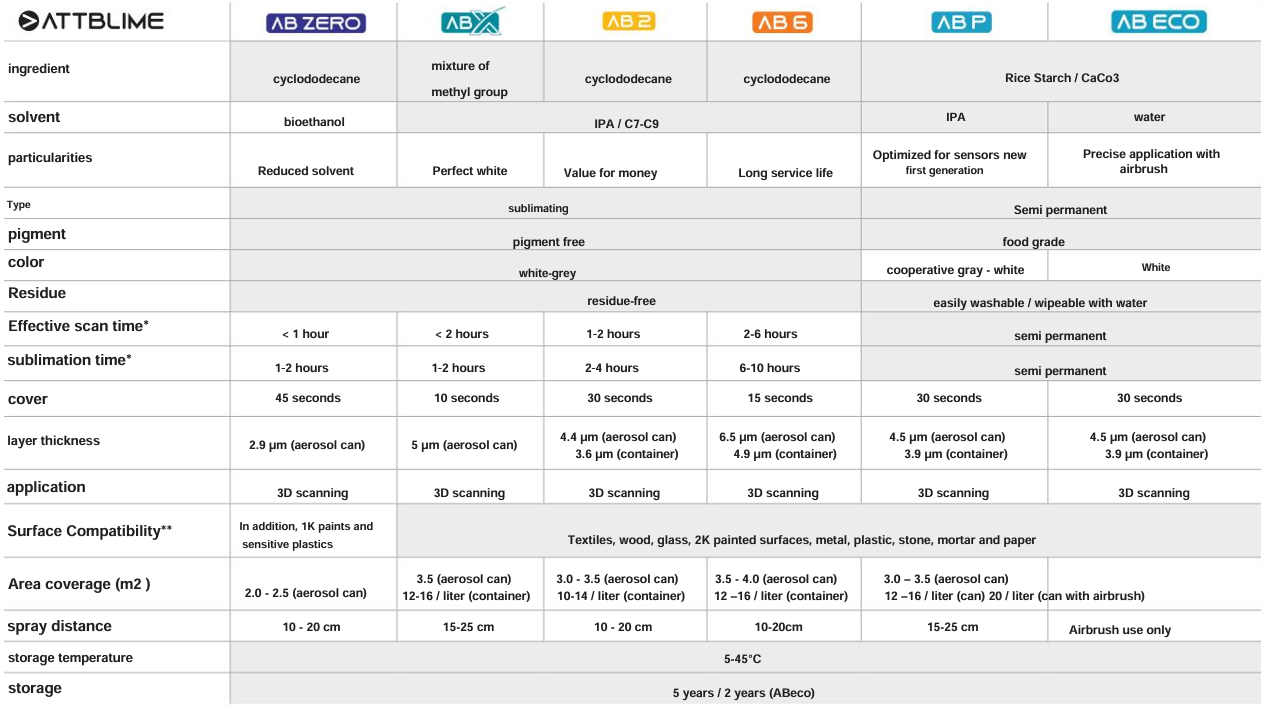

ATTBLIME AB2 3D Scanning Spray Technical Datasheet

Objects Scanned Using ATTBLIME AB2 3D Scanning Spray
