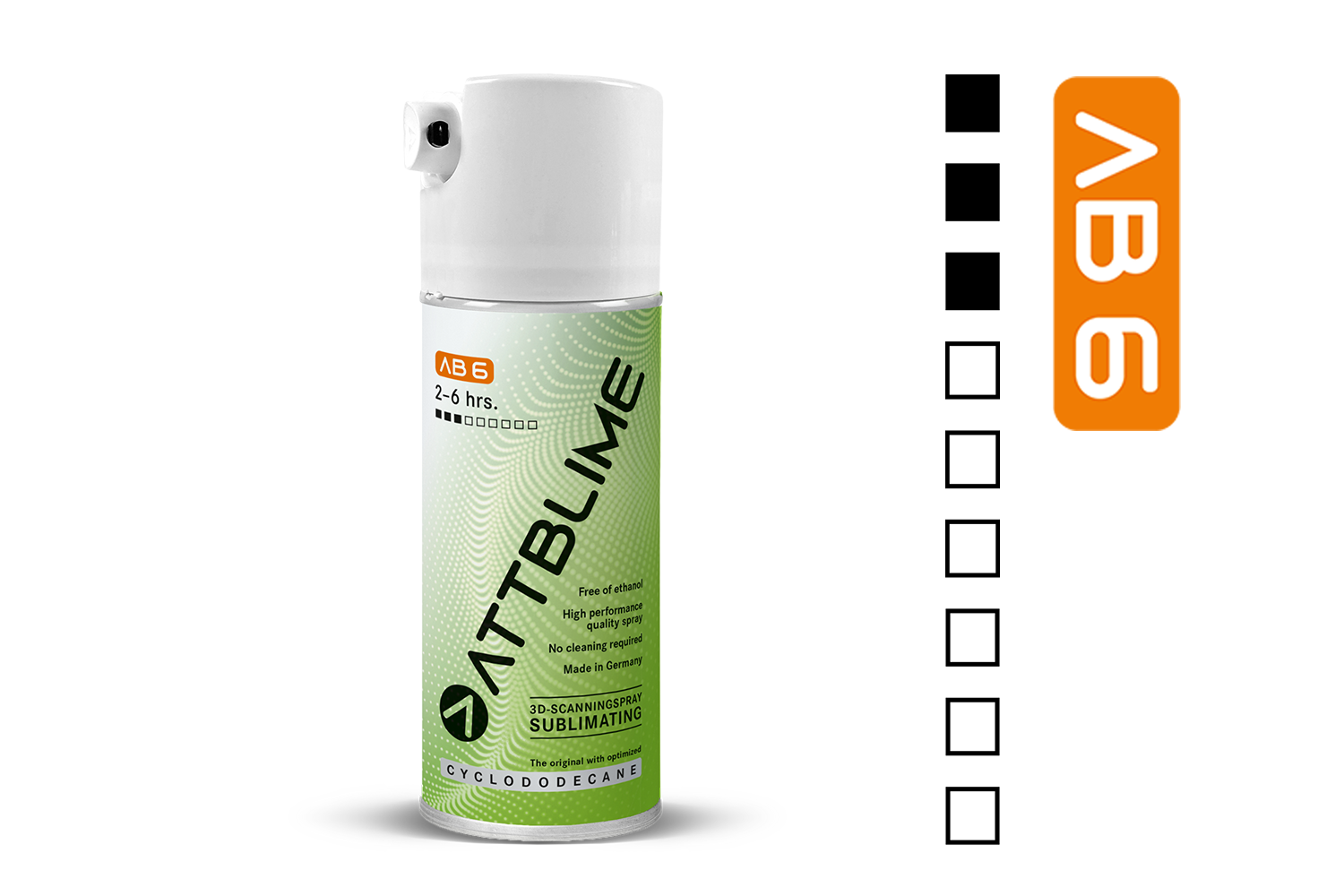

ATTBLIME AB6 Vanishing/Disappearing 3D Scanning Spray

ATTBLIME AB6 Vanishing/Disappearing 3D Scanning Spray

Regular price $55.00 AUD
Regular price $65.00 AUD Sale price $55.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Volume

ATTBLIME® AB6 3D scanning spray is a high-performance 3D scanning Spray, enables the user to achieve an even and homogeneous spray pattern. The self-evaporating (sublimating/vanishing) 3D scanning spray AB6 is based on the proven raw material cyclododecane, which has been further optimized.

Attblime AB6 provides an effective scan time of 2 to 6 hours. The evaporation/disappearing time (sublimation time) is around 6 to 24 hours. However these times vary could depending on the component surface, room temperature, air circulation or humidity.

The scanning spray is free of ethanol , adamantane, TIO2 and n-Hexane. AB6 adheres to all porous and non-porous surfaces such as textiles, wood, glass, painted surfaces, metal, plastic, stone, mortar and paper.

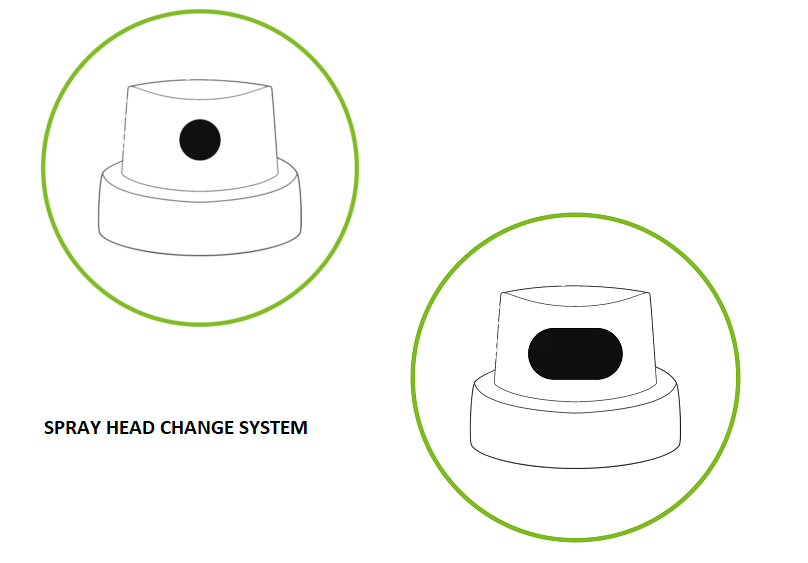

The unique SHC system (spray-head-change-system) enables the user to control the layer thickness and thus the sublimation times between vertical and horizontal, as well as wide and narrow exit angles with the two spray heads which comes with it

ATTBLIME AB6 is ideal for the temporary matting of surfaces for optical 3D measurement technology without subsequent cleaning. Reference point marks can simply be stuck onto the treated area.

  • Ethanol, N-Hexane,  Adamantane and TiO2 free, ATTBLIME doesn't give you the tingling of nerves or respiratory problems as compared to a similar product in the market.
  • Spray Head Change System - Round for uneven surfaces and Flat/Horizontal for uniform coverage on plane surface.
  • Coating Thickness - less than 5.75 µm
  • Scan Time - 2 - 6 hours.
  • Sublimating time 6 to 24 hours.
  • Residue-free sublimation after 6 to 10 hours.
  • No cleaning required.
  • Made in Germany.
  • This is equivalent to AESUB Orange 3D Scanning spray however with better performance.

ATTBLIME AB6 3D Scanning Spray Technical Datasheet

AB6 3D Scanning Spray Scans
